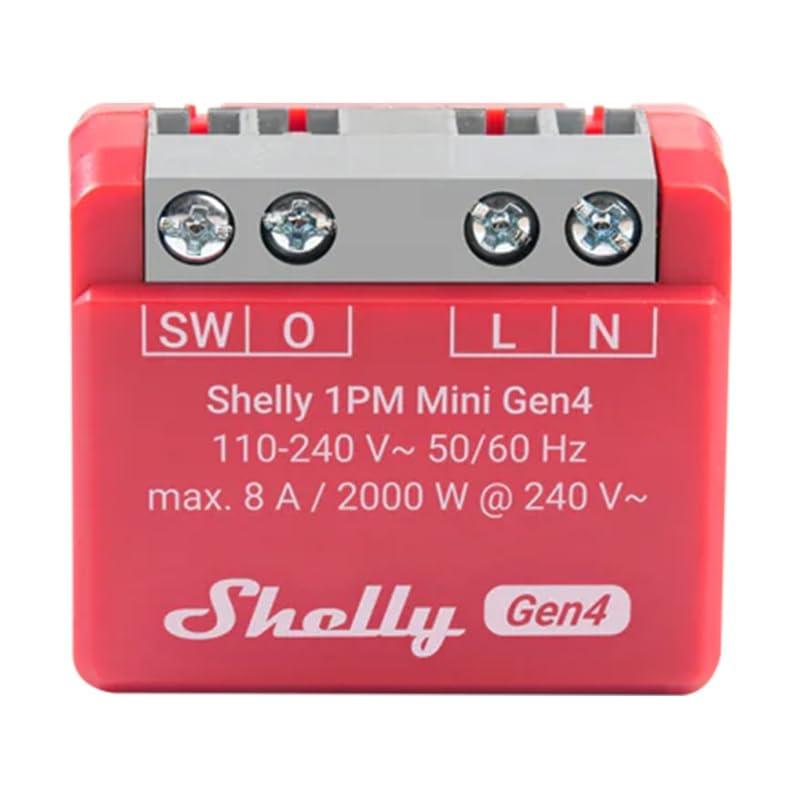

Shelly 1PM Mini Gen4 Smart Relay Wi-Fi Zigbee Matter 1 Channel 8A Red

Shelly 1PM Mini Gen4 Controller Zigbee/MatterThe Shelly 1PM Mini Gen4 controller allows you to remotely control electrical devices and accurately measure their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth and Matter, so it can be easily integrated into various home automation systems. It works on the local network and via the cloud. The built-in web interface allows you to configure and monitor operation without the need for additional software. Thanks to its small size, it fits into typical installation boxes and can be mounted behind outlets or switches in areas with limited space.Control and monitoring in oneThe Shelly 1PM Mini Gen4 works as both a relay and an energy consumption meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement function allows you to accurately analyze the operation of connected equipment and helps optimize energy costs. The device sends data to the cloud or stores it locally depending on user preference.Compatibility and ecosystem integrationsThe device supports Zigbee, Wi-Fi, Bluetooth and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP and local APIs, enabling advanced scenarios and collaboration with other smart home components.Programming, schedules and responsesThe product allows the creation of complex schedules and scenarios with the ability to set up to 20 schedules and webhooks - each with up to 5 URLs. It also supports scripts written in Shelly Script language, which allows automating actions depending on time conditions, device status or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.Stability and operational securityThe Shelly 1PM Mini Gen4 is equipped with a number of protections, including overheating, overvoltage, overload and power overload. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory used, the device provides fast data processing and stable operation. In addition, it can act as a repeater, amplifying Zigbee or Wi-Fi signals in hard-to-reach areas.GeneralManufacturerShellyModel1PMMiniGen4Physical parametersDimensions29 x 34 x 16 0.5 mm / 1.34 1.11 0.63 0.02 inchesWeight18 1 g / 0.63 0.04 ouncesMaximum tightening torque of screw terminals0.4 Nm / 3.5 lbf.inWire cross section0.2 to 2.5 mm / 24 to 14 AWG (wire, wire and crimp sleeves)Wire stripping length6 to 7 mm / 0.24 to 0.28 in.MountingWall boxHousing materialPlasticHousing colorRedConnector colorGrayEnvironmental conditionsOperating temperature-20C to 40C / -5F to 105FOperating humidity30% to 70% RHMaximum altitude.2000 m / 6562 ftElectrical parametersPower supply110-240 V ACRelayNO contact, 1 pole, contactExternal protectionTripping characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limiting class 3Output circuit parametersMaximum switching voltage240 V ACMaximum switching current8 A / 240 V ACPower measurementYesOvervoltage / cut-off protectionYesOverload / cutout protectionYesOver-power protection / cut-offYesSensors, metersBuilt-in internal temperature sensorYesWi-FiProtocol802.11 b/g/nRF bandwidth2412 - 2472 MHzMaximum RF power< 20 dBmRangeUp to 30 m / 100 feet indoors and 50 m / 160 feet outdoors (depends on local conditions)BluetoothProtocol5.0RF band2402 - 2480 MHzMaximum RF power< 4 dBmRangeUp to 10 m / 33 feet indoors and 30 m / 100 feet outdoors (depends on local conditions)ZigbeeProtocol802.15.4RF bands2400 - 2483.5 MHzMaximum RF power< 20 dBmRangeUp to 100 m / 328 feet indoors and 300 m / 984 feet outdoors (depends on local conditions)Microcontroller unitCPUESP-Shelly-C68FFlash memory8 MBFirmware capabilitiesSchedules20Webhooks (URL shares)20, each with up to 5 URLsScriptsYesMQTTYes
