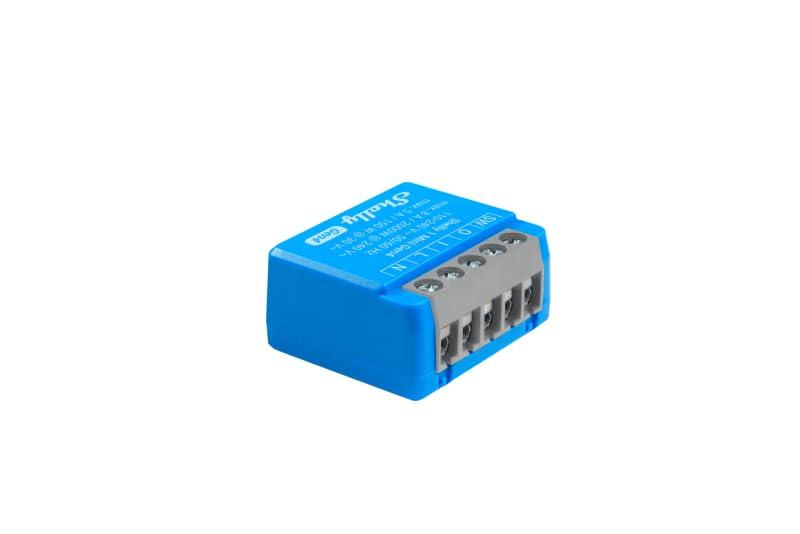

Shelly 1 Mini Gen4 Smart Switch Zigbee Matter Wi-Fi Bluetooth 29 x 34 x 16 mm Blue

Shelly 1 Mini Gen4 Controller Zigbee/MatterThe Shelly 1 Mini Gen4 is a powerful relay controller that, despite its small size (29 x 34 x 16 mm), offers support for multiple communication standards, including Wi-Fi, Zigbee, Bluetooth and Matter. It can be mounted in junction boxes, behind outlets and in areas where mounting space is limited. Thanks to its potential-free contacts, the device can be used in applications that require galvanic separation of circuits, such as for controlling a gate, relay, bell or automation system regardless of their operating voltage. It also supports schedules, scenes, scripts and integrates with home automation systems such as Google Home, Alexa, and Samsung SmartThings.Extensive connectivity and Matter protocol compatibilityThe Shelly 1 Mini Gen4 controller offers communication via Wi-Fi (802.11 b/g/n), Zigbee (802.15.4) and Bluetooth 5.0. The device also acts as a BLE gateway and Wi-Fi and Zigbee signal booster for other IoT devices. Thanks to its compatibility with the Matter protocol, it can be integrated into any ecosystem that supports the standard, which increases its versatility and simplifies configuration in a variety of home environments.Potential-free contacts and operation with different voltagesThe Shelly 1 Mini Gen4 has the advantage of being able to control both low-voltage (30 VDC) and mains-powered (up to 240 VAC) devices. Thanks to the presence of a potential-free contact (dry contact), it can also be used in situations requiring an isolated relay, such as controlling gates, bells or lighting.Advanced scheduling and scene functionsThe Shelly 1 Mini Gen model allows you to set as many as 20 schedules, so you can schedule equipment to automatically turn on or off at specific times on selected days of the week. In addition, it supports the creation of scenes, i.e. sets of actions triggered simultaneously or sequentially in response to an event, such as turning on several devices when motion is detected. Schedules and scenes are configured using the Shelly Smart Control app, available free of charge for mobile devices and computers.Integrations and full local or remote controlThe device can be integrated not only with systems from major voice assistant manufacturers, but also with local systems via HTTP/HTTPS, MQTT, WebHooks or KNX net/IP APIs. Shelly 1 Mini Gen4 works both locally (without access to the cloud) and over the Internet, allowing full control regardless of where the user is. A built-in web interface allows direct configuration from a browser.High installation flexibilityThe controller's housing is made of plastic and allows installation in installation boxes. Despite its compact size, the device houses an advanced ESP-Shelly-C68F microcontroller with 8 MB of flash memory, allowing it to handle scripting and real-time functions.GeneralManufacturerShellyModel1MiniGen4Physical parametersDimensions29 x 34 x 16 0.5 mm / 1.34 x 1.11 x 0.63 0.02 inchesWeight19 1 g / 0.65 0.04 ozMaximum tightening torque of screw terminals0.4 Nm / 3.5 lbinCable cross section0.2 to 2.5 mm / 24 to 14 AWG (solid wire, multi-stranded wire, bushings)Wire stripping length6 to 7 mm / 0.24 to 0.28 in.MountingWall boxHousing materialPlasticHousing colorBlueConnector colorGrayEnvironmental conditionsOperating temperature-20C to 40C / -5F to 105FOperating humidity30% to 70% RHMaximum altitude.2000 m / 6562 ftElectrical parametersPower supply110 - 240 VACRelayPotential-free, NO contact, 1-pole, contactPower consumption< 1.2 WExternal protectionTripping characteristic B or C, rated current max. 10 A, breaking capacity min. 6 kA, energy limitation class 3Output circuit parametersMaximum switching voltage240 VAC / 30 VDCMaximum switching current8 A / 240 VAC, 5 A / 30 VDCMaximum output power2000 W / 240 VAC, 150 W / 30 VDCOvervoltage protectionNoneCurrent protectionNoneOver-power protectionNoneSensors and measurementsInternal temperature sensorYesWi-FiProtocol802.11 b/g/n/axRF band2412 - 2472 MHzRF power< 20 dBmRangeUp to 30 m indoors / 50 m outdoors (depending on local conditions)BluetoothProtocol5.0RF band2402 - 2480 MHzRF power< 4 dBmRangeUp to 10 m indoors / 30 m outdoors (depending on local conditions)ZigbeeProtocol802.15.4RF bandwidth2400 to 2483.5 MHzRF power< 20 dBmRangeUp to 100 m indoors / 300 m outdoors (depending on local conditions)Microprocessor unitCPUESP-Shelly-C68FFlash memory8 MBFirmware featuresSchedules20WebhookS (URL shares)20 with 5 URLs per webhookScriptsYesMQTTYes
